SQL Server

Configuration

Prerequisites

If your database is hosted behind a Firewall, you need to add our IP addresses to the Firewall whitelist.

Connecting the data source

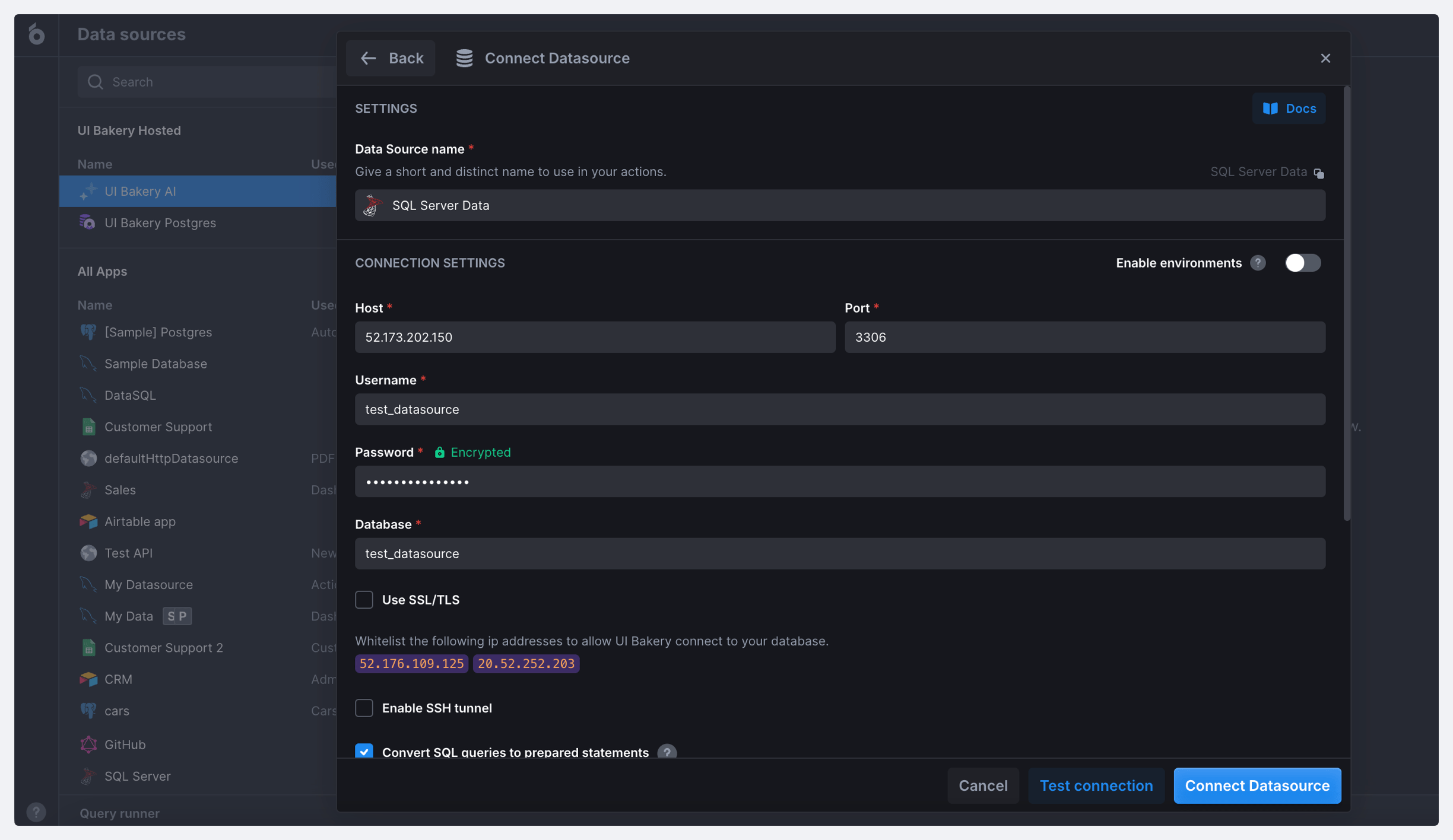

1. On the Data sources page, click Connect, and select SQL Server in the Data sources list.

2. Specify all the required credentials.

3. Click Test connection to check whether the data source can be connected, and then click Connect Datasource to complete the setup.

UI Bakery will extract the database structure and store column types. This data will be used to suggest the proper table columns and form field types.

If you need to be able to override the default data source database with a custom value in an action, you can enable the Allow override database name in action setting in the Data source connection window. Once enabled you will be able to specify a custom database when configuring an action. In case a database is not specified, the default data source database will be used.

Usage

Once you've established the connection between UI Bakery and SQL Server, you can start interacting with its data. Below is a list of supported action steps:

• SQL Query
• Load Table
• Load Row
• Create Row
• Bulk Create Rows
• Update Row
• Delete Row
• Bulk Delete Rows
