Button

Overview

Button is a simple yet functional component that allows you to call actions, add navigation options, and more. Buttons can be used as standalone components or as building blocks in other components, for example, a modal.

Properties

Name
Type
Description

name

string

Component name

Methods

Name
Parameters
Returns
Description

click

event?: any

void

Trigger click event. Optional event object can be passed

setDisabled

disabled: boolean

void

Disable or enable the component

setUrl

url: string, queryParams?: object

void

Set the URL setting with optional query parameters

Triggers

Name
Description

On Click

Triggered when the component is clicked

On Init

Triggered when the component is initialized

Working with the component

In this section, we'll describe some of the most popular use cases of the Button component. Check them out below๐Ÿ‘‡

Use case: Removing a user from the list

We have the following layout: a Table displaying the list of users and a Detail component showing the details of the selected user.

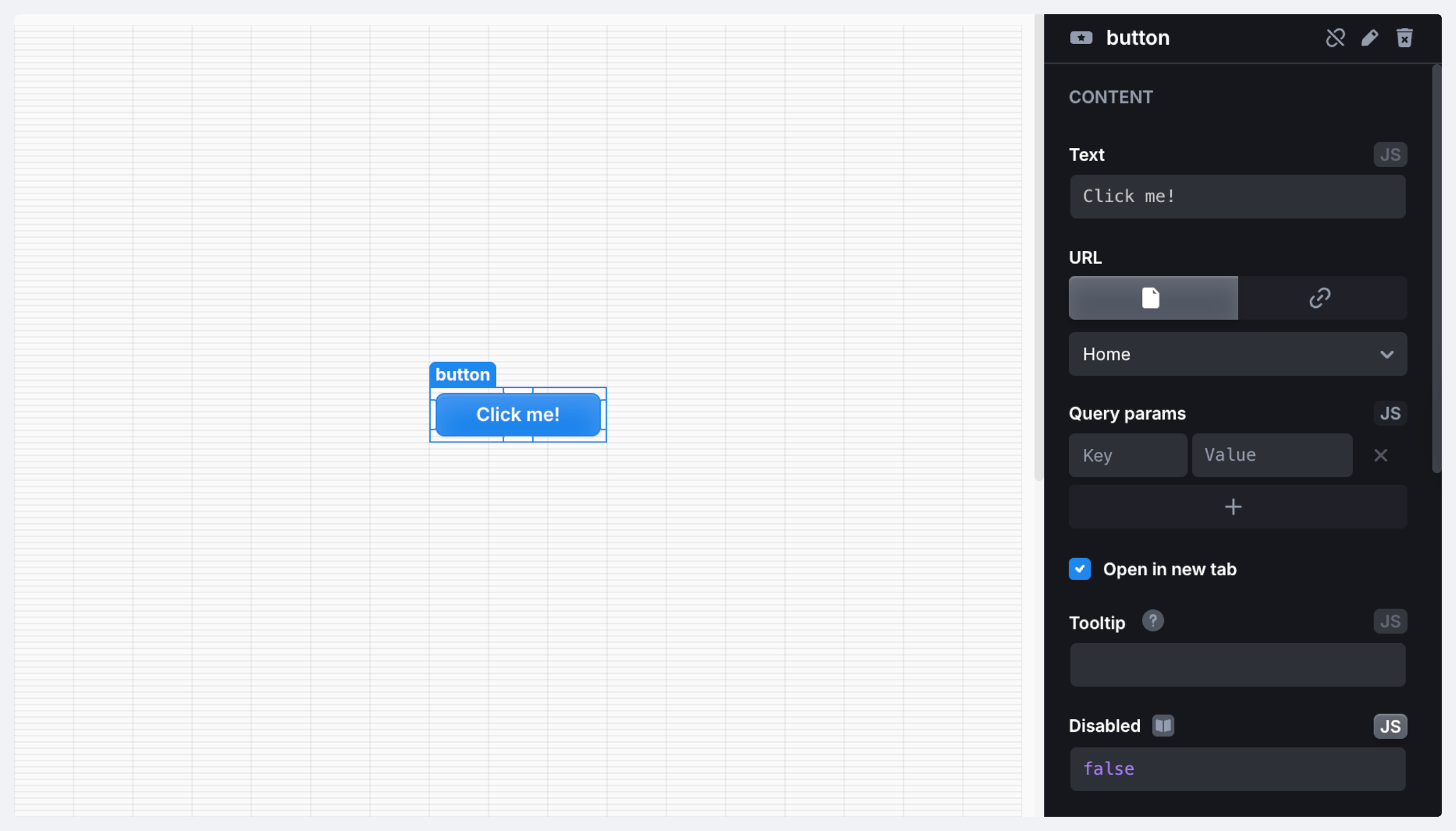

  1. Add a Button to the canvas that will be used to remove users from the list.

  2. Next, navigate to the Button's Triggers section and create a new action for the On Click trigger.

  3. Configure the action in the following way:

    1. First step:

      1. Select your data source and the Delete Row action type.

      2. In the Filters section, set the id that will be used to delete records:{{ui.usersTableDetail.value.id}}

    2. Second step - Add the Execute Action step and select your loadData action.

That's it! Now, when you click the Remove button, the selected user will be deleted from the list and the Table will show updated records.

Use case: Hiding a button based on condition

In some cases, you may need certain actions to be available only based on specific conditions. Let's say you have a list of users and you want the Reset password button to be shown only to the Admin. Here's how you can do that:

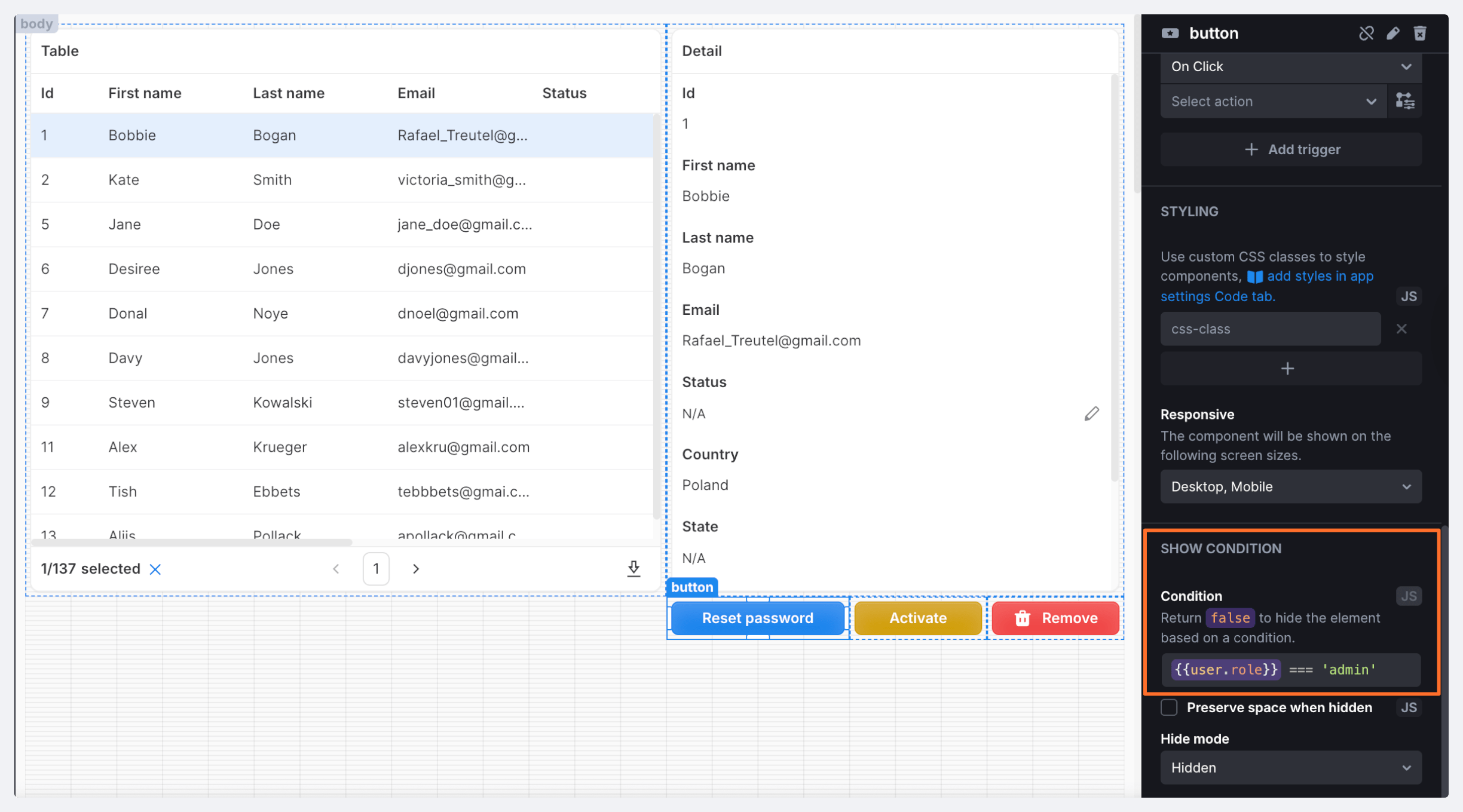

  1. Add a Button to the canvas and give it a name, for example, Reset password.

  2. Now, scroll down to the Show condition settings of the component in the right side panel.

  3. In the Condition field, specify the required condition, for example, {{user.role}} === 'admin'.

Done! Now, the button will be hidden for all other users, except the ones with the Admin role.

You can manage the button when it's hidden via the App state tab in the left side panel.

Use case: Disabling a button based on condition

Another typical example is disabling a button based on a specific condition - for example, the Activate button that should be available only for users with the Inactive status.

  1. Add a Button to the canvas and give it a name, for example, Activate.

  2. Now, in the Button's settings, locate the Disabled field and select the Yes option there.

  3. Next, switch to the field's JS mode to configure the condition:

{{ui.usersTableDetail.value.status == 'Active'}}

That's it! Now the button will be disabled for users which already have the Active status.

Use case: Adding navigation with a button


You can also check out the articles below for examples of using the Button component inside the Table๐Ÿ‘‡
