MySQL

UI Bakery allows you to easily connect to a MySQL database with no need for additional layers (APIs or 3rd-party services).

Prerequisites

If your database is hosted behind the Firewall, add the following IP address to the Firewall whitelist:
52.176.109.125

Configuration

Go to the Data sources page –> Connect –> Choose MySQL. Enter your credentials and click Test connection.
Adding MySQL as a Data source
If the connection is successful, click Connect Data source. UI Bakery will extract the database structure and store column types. This data will be used to suggest the proper table columns and form field types.
If you need to be able to override the default data source database with a custom value in an action, you can enable the setting Allow override database name in action:
Once enabled, when configuring the action, you will be able to specify the custom database:
In case a database is not specified, the default data source database will be used.

Usage

Once you have the connection between UI Bakery and MySQL, you can access its data, i.e. load and send it back.
  1. 1.

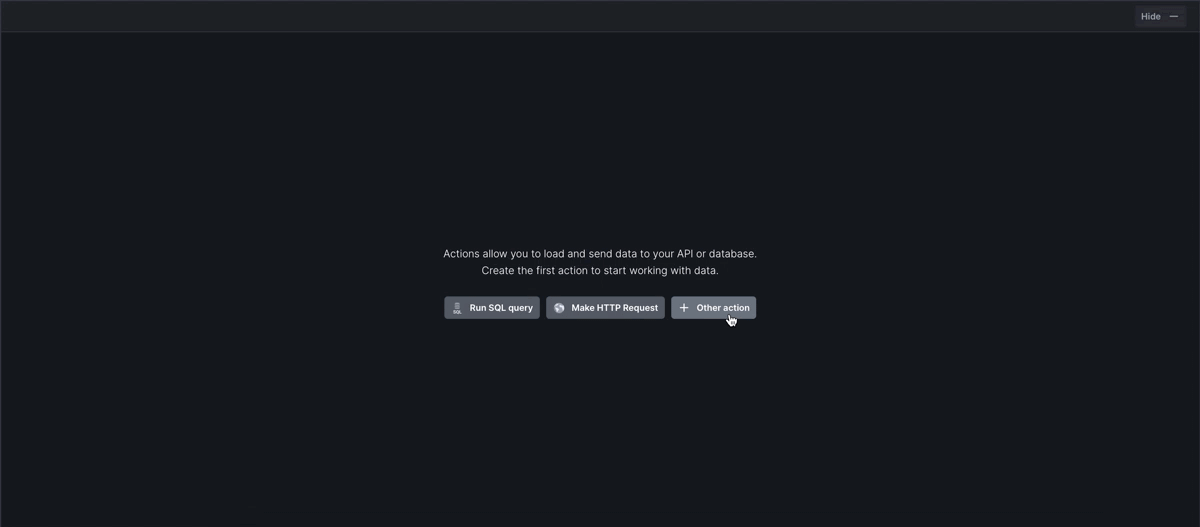

    Create an Action using one of the following types to access your data:
  2. 2.
    Configure the Action. Select a proper Table, set filters, and other settings or write a SQL query.
  3. 3.
    Run the Action. Take a look at the Results section to make sure the data is loaded.
